Replacing an inspection camera head is necessary when you notice specific issues. These issues include blurry or distorted images, intermittent video feed, and physical damage to the camera head. Frequent connectivity problems, reduced light output, and water or moisture inside the camera are also signs.

Additionally, unresponsive camera controls indicate a need for replacement. Regular maintenance and timely replacement ensure the camera’s performance and longevity.

Inspection cameras are an important tool for plumbers, allowing them to see inside pipes and other hard-to-reach places without invasive procedures. Over time, the camera head, an essential component of these devices, can wear out or become damaged. This can lead to inaccurate diagnostics, incomplete inspections, and reduced service quality.

This guide will cover the signs indicating a need for replacement. By understanding these indicators, plumbers can maintain their equipment’s performance and ensure efficient inspections.

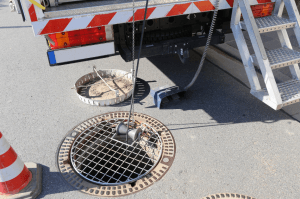

Plumber inspecting sewer using a camera

Signs Your Inspection Camera Head Needs Replacement

The camera head is an important part of the inspection camera, responsible for capturing high-quality images and sending them to the monitor. However, like any tool, inspection cameras can wear out over time. Regular use, exposure to harsh environments, and accidental damage can reduce the camera head’s performance. Ensuring your inspection camera works properly is essential for accurate and reliable diagnostics.

A malfunctioning camera head can lead to incorrect diagnoses, incomplete inspections, and poor service outcomes. To avoid these issues, it’s important to check and replace the camera head if needed regularly. This is crucial for effective plumbing troubleshooting with inspection cameras.

The following are the signs that your inspection camera head needs replacement:

Blurry or Distorted Images

When the images from your inspection camera appear blurry or distorted, it’s a clear sign that the camera head might need replacement.

Here’s why this happens and what to look for:

Dirty or Scratched Lens: Over time, the lens on your inspection camera can accumulate dirt, grime, or scratches. This buildup can lead to blurry images and make it difficult to see the necessary details. Regular cleaning can help, but it might be time for a replacement if the lens is scratched.
Internal Damage: The internal components of the camera head, such as the sensor, can get damaged from regular use or impact. This damage can cause image distortion.
Age and Wear: Like any tool, the camera head can wear out over time. If your camera head is older and you see a steady decline in image clarity, consider replacing it to maintain your inspection efficiency.

Intermittent Video Feed

An intermittent video feed is another sign that your inspection camera head might need replacement. The following are the causes of this issue:

Loose Connections: One of the most common causes of intermittent video feed is a loose connection between the camera head and the cable. Check to ensure that all connections are secure. The camera head might be faulty if the issue persists despite tightening connections.
Cable Wear and Tear: The cable connecting your camera head to the monitor can also wear out over time. Inspect the cable for any visible signs of damage. If the cable looks fine, but the video feed still cuts in and out, the issue might be with the camera head.
Internal Wiring Issues: The wiring inside the camera head can become loose or damaged from regular use or impact. These internal issues can cause the video feed to cut out intermittently. Regular maintenance and following video inspection system calibration tips can help prevent these problems.
Power Supply Problems: Ensure your inspection camera’s power supply is stable. Inconsistent power can cause the video feed to flicker or cut out. If the power supply is stable and the issue continues, the camera head may need replacement.

Physical Damage to the Camera Head

Physical damage to the camera head clearly indicates that it may need to be replaced. Here are the key points to consider:

Cracks and Dents: The camera head is often exposed to harsh conditions, and it’s common for getting bumped or dropped. If you notice any cracks or dents on the camera head, these could compromise its functionality and image quality.
Lens Damage: The lens is important for capturing clear images. If the lens is scratched, chipped, or cracked, it can cause blurry or distorted images. A damaged lens usually means the entire camera head needs replacing.
Housing Wear and Tear: The outer housing of the camera head protects the internal components. The internal components are likely at risk if the housing shows significant wear.
Bent or Misaligned Parts: Sometimes, the camera head may suffer impacts that cause parts to bend or become misaligned. This can affect the camera’s ability to capture accurate images and cause operational issues.

Frequent Connectivity Issues

Frequent connectivity issues can be frustrating and point to deeper problems with your inspection camera head.

Here’s what to watch for and why it matters:

Faulty Cable: The cable connecting the camera head to the monitor can degrade over time, especially if it’s regularly bent or twisted. Check for any visible signs of wear or damage. However, if the cable seems fine and you still experience connectivity issues, the problem might be inside the camera head.
Internal Wiring Problems: Inside the camera head, the wiring can become loose or damaged due to regular use or accidental impacts. These internal issues can cause the video feed to be intermittent or fail altogether. If external checks don’t resolve the issue, internal wiring is likely the culprit.
Interference and Signal Disruptions: Sometimes, connectivity issues are caused by signal interference or disruptions. Ensure that the camera head and its cable are not near any sources of electromagnetic interference. If the problem persists despite removing external factors, the camera head may be faulty.

Reduced Light Output

Reduced light output from your inspection camera can significantly affect the clarity and quality of the images you capture.

Here are some key points to consider:

Dim or Flickering Lights: If the LED lights on the camera head appear dim or flicker, it can make it difficult to see details in dark or enclosed spaces. This can be caused by worn-out LEDs or issues with the power supply to the lights.
Uneven Lighting: Sometimes, only some LEDs may fail, leading to uneven lighting. This can create shadows and blind spots in your images, making it harder to conduct thorough inspections.
Battery Issues: If your inspection camera uses a battery pack, reduced light output could be due to a weak or failing battery. Ensure the battery is fully charged and functioning properly. If the battery is in good condition but the lights are still dim, the problem likely lies with the camera head.

Water or Moisture Inside the Camera

Water or moisture inside the camera head can severely damage your inspection equipment. Here are the signs and effects:

Foggy Lens: If you notice fogging inside the camera lens, it indicates moisture. This fogging can obscure the camera’s view, making it difficult to capture clear images.
Corroded Components: Moisture can lead to the corrosion of internal components. This corrosion can cause electrical shorts, damaging the camera’s circuitry and leading to potential failure. Inspect the camera head for any signs of rust or corrosion.
Intermittent Functionality: Water damage can cause the camera to work intermittently or not at all. Water damage might be the culprit if the camera powers on and off randomly or if you experience frequent connectivity issues. Moisture can disrupt the electrical connections inside the camera head.
Preventive Measures: To prevent water or moisture from entering the camera head, ensure that all seals and gaskets are intact and in good condition. Regularly inspect and maintain the camera to keep it watertight, especially if you frequently use it in wet or humid environments.

Unresponsive Camera Controls

When the controls of your inspection camera become unresponsive, it can significantly prevent you from conducting thorough inspections. Here’s what to look out for:

No Response to Commands: If the camera doesn’t respond to control inputs, it indicates a problem with the control system.
Delayed Reactions: Sometimes, the camera might respond to commands, but with a noticeable delay. This lag can make it difficult to navigate and inspect areas effectively. Delayed reactions often stem from internal hardware issues or software glitches.
Stuck Controls: Physical buttons or joystick controls that get stuck or don’t return to their neutral position after being pressed can cause unresponsiveness. This can be due to dirt, debris, or wear and tear affecting the buttons.
Software Malfunctions: Unresponsive controls can also result from software problems. If your camera uses software to manage controls, ensure it’s up-to-date. Sometimes, a simple software update or reset can resolve these issues.
Inspect Connections: Check all the connections between the control unit and the camera head. Loose or damaged cables can disrupt the signal and cause unresponsiveness. Ensure everything is securely connected and inspect for any visible signs of wear.
